Description

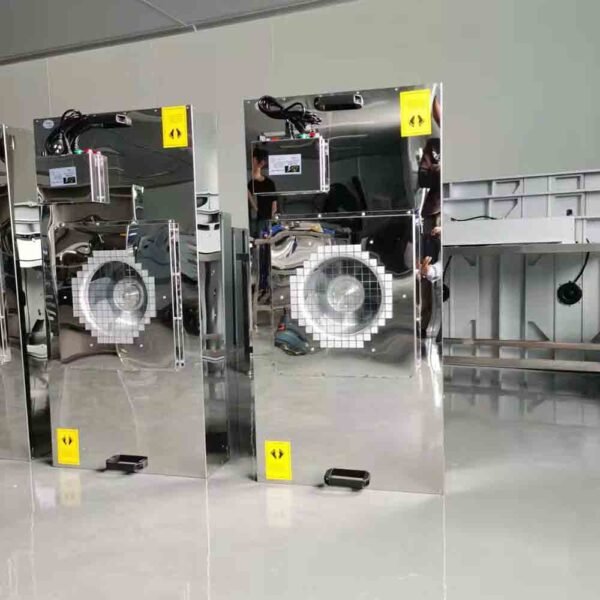

The FFU (Fan Filter Unit) has a long service life, low noise, maintenance-free operation, low vibration, stepless speed adjustment, and uniform airflow. It is easy to install and can be modularly connected, making it widely used in cleanrooms, clean workstations, clean production lines, modular cleanrooms, and local Class 100 applications. The FFU is equipped with both primary and high-efficiency filters. The fan draws air from the FFU top, which is filtered through both the primary and high-efficiency filters. The clean air after filtration is evenly distributed across the entire air outlet at a velocity of 0.45 m/s ± 20%. It provides high-quality clean air for cleanrooms and microenvironments of various sizes and cleanliness levels. In new cleanroom construction or renovation of clean factory buildings, it can improve cleanliness levels, reduce noise and vibration, and significantly lower costs. It is easy to install and maintain, making it an ideal component for clean environments.
Dimensions (L x W x H): 1175x575x245
Airflow (m³/h): 1000
Air velocity (m/s): 0.45m/s ± 20%
Cleanliness: Class 100 (U.S. Federal Standard 209E)
High-efficiency filter efficiency: 99.99% @ 0.5μm
High-efficiency filter dimensions: 1170x570x69
Noise: < 65dB (measured 1m below the unit at an airspeed of 0.45m/s)
Housing material: Stainless steel / Aluminum alloy / Galvanized iron sheet
Power supply: 230VAC 50Hz
Power: 0.18kW
Weight: 25kg
