Fully Automatic Hand Washing and Drying Machine

Description

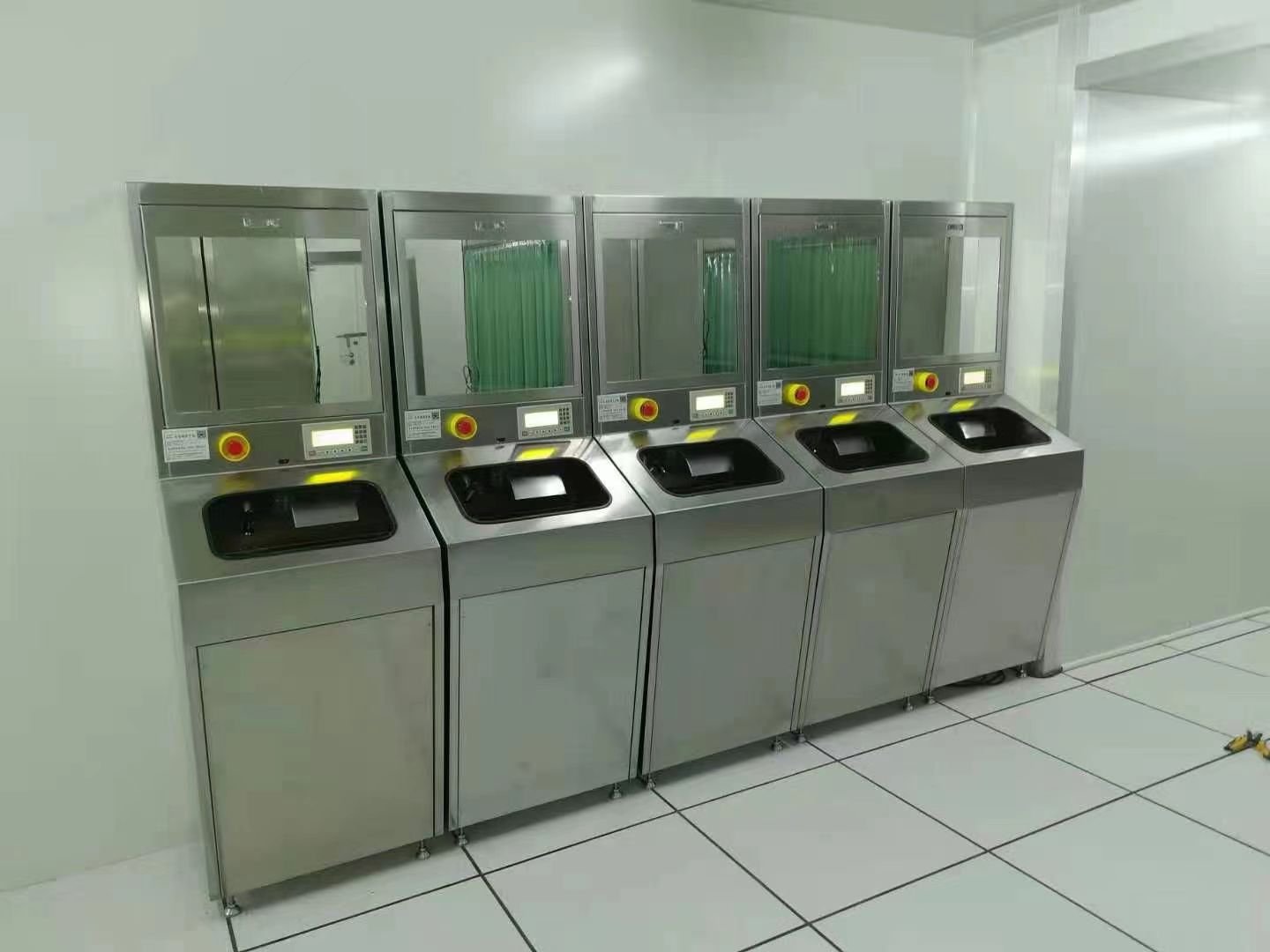

Fully Automatic Hand-Washing and Drying Machine

The fully automatic hand washing and drying machine is an essential step before entering a cleanroom. Its main function is to provide clean water to ensure that operators’ hands are thoroughly washed. High-speed airflow, filtered through high-efficiency filters and heated by an eco-friendly heater, dries the hands to prevent contamination of cleanroom garments or the introduction of pollutants into the cleanroom, which could lead to control failures.

---

Features

Clean Hand Washing
Automatically dispenses clean water through sensors. The sensing distance is adjustable, and water dispensing continues automatically even during power failure.

Eco-Friendly Hot Air
Air is heated by a clean heater and blown out from high-speed clean air nozzles to dry hands quickly and effectively.

Fully Automatic Operation
As a fully automated system, it allows users to wash and dry their hands without touching any equipment, ensuring cleanliness and hygiene.

---

Technical Specifications

• Dimensions (W x D x H): 600 × 600 × 1800 mm

• Material:

  • Body: Stainless steel or powder-coated cold-rolled steel

  • Interior: Stainless steel

• Cleanliness Level: CLASS 100 (ISO 5)

• Water Source: Clean water capable of filtering particles as small as 0.01 μm

• HEPA Efficiency: 99.99%

• Hot Air Nozzle: Eco-friendly hot air, temperature 40–60°C, airspeed over 30 m/s

• Drying Time: Approximately 30 seconds

• Noise Level: ≤ 75 dB(A) (measured 1 meter from the hot air nozzle)

• Power Supply: AC 220V 50Hz, approximately 1300W

• Built-in Mirror: Convenient for personnel to tidy up their clothing and appearance

Required Accessories:

• Water inlet pipe: 1/2″ PT thread

• Drain pipe: 1″ PT thread

Technical Specifications

• Dimensions (W x D x H): 680 × 680 × 1800 mm

• Material:

  • Body: Stainless steel or powder-coated cold-rolled steel

  • Interior: Stainless steel

• Cleanliness Level: CLASS 100 (ISO 5)

• Water Source: Clean water capable of filtering particles as small as 0.01 μm

• HEPA Efficiency: 99.99%

• Hot Air Nozzle: Eco-friendly hot air, temperature 40–60°C, airspeed above 30 m/s

• Drying Time: Approximately 30 seconds

• Noise Level: ≤ 75 dB(A) (measured 1 meter from the hot air nozzle)

• Power Supply: AC 220V, 50Hz, approximately 1300W

• Built-in Mirror: Allows personnel to tidy up clothing and appearance conveniently

Required Accessories:

• Water inlet pipe: 1/2″ PT thread

• Drain pipe: 1″ PT thread
